Description

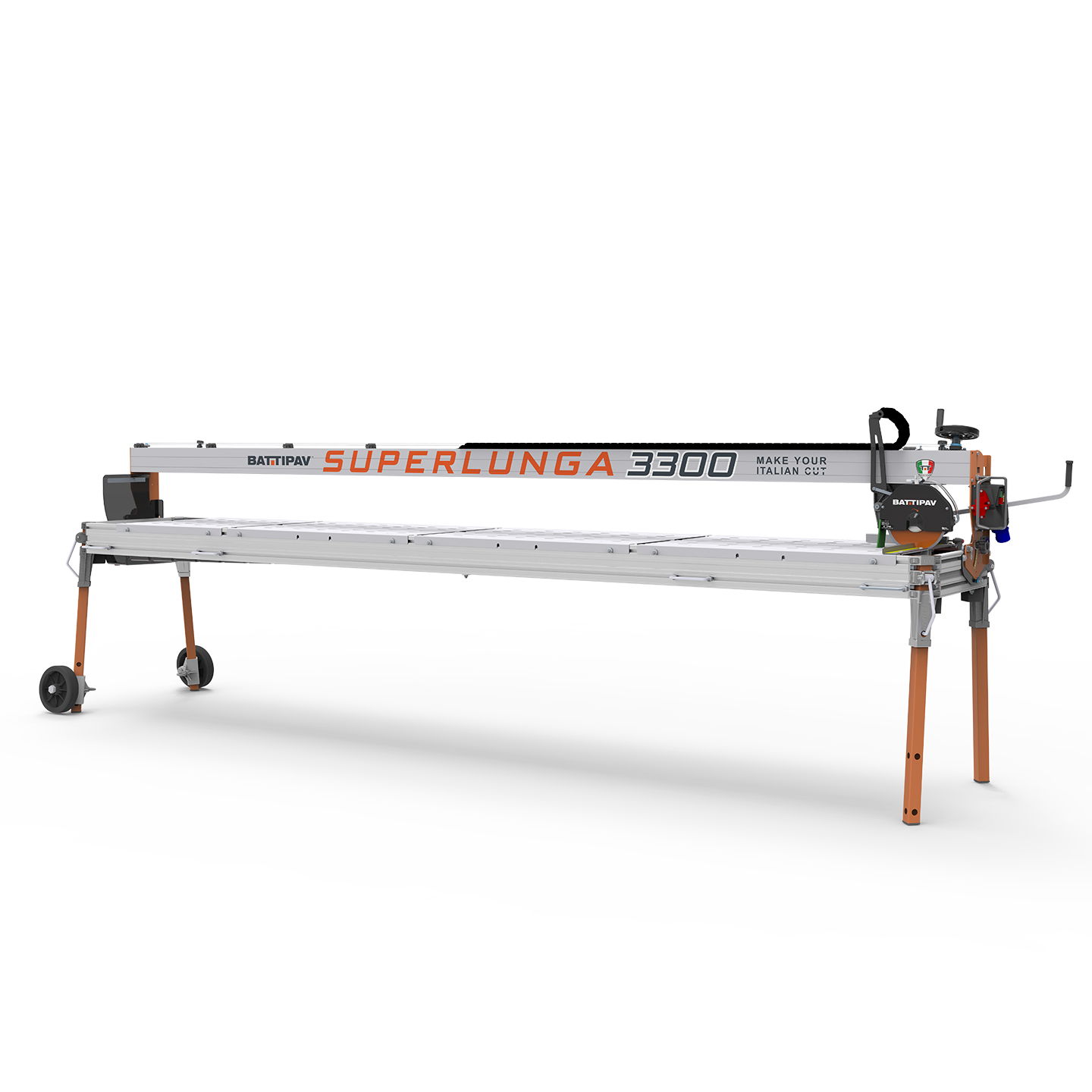

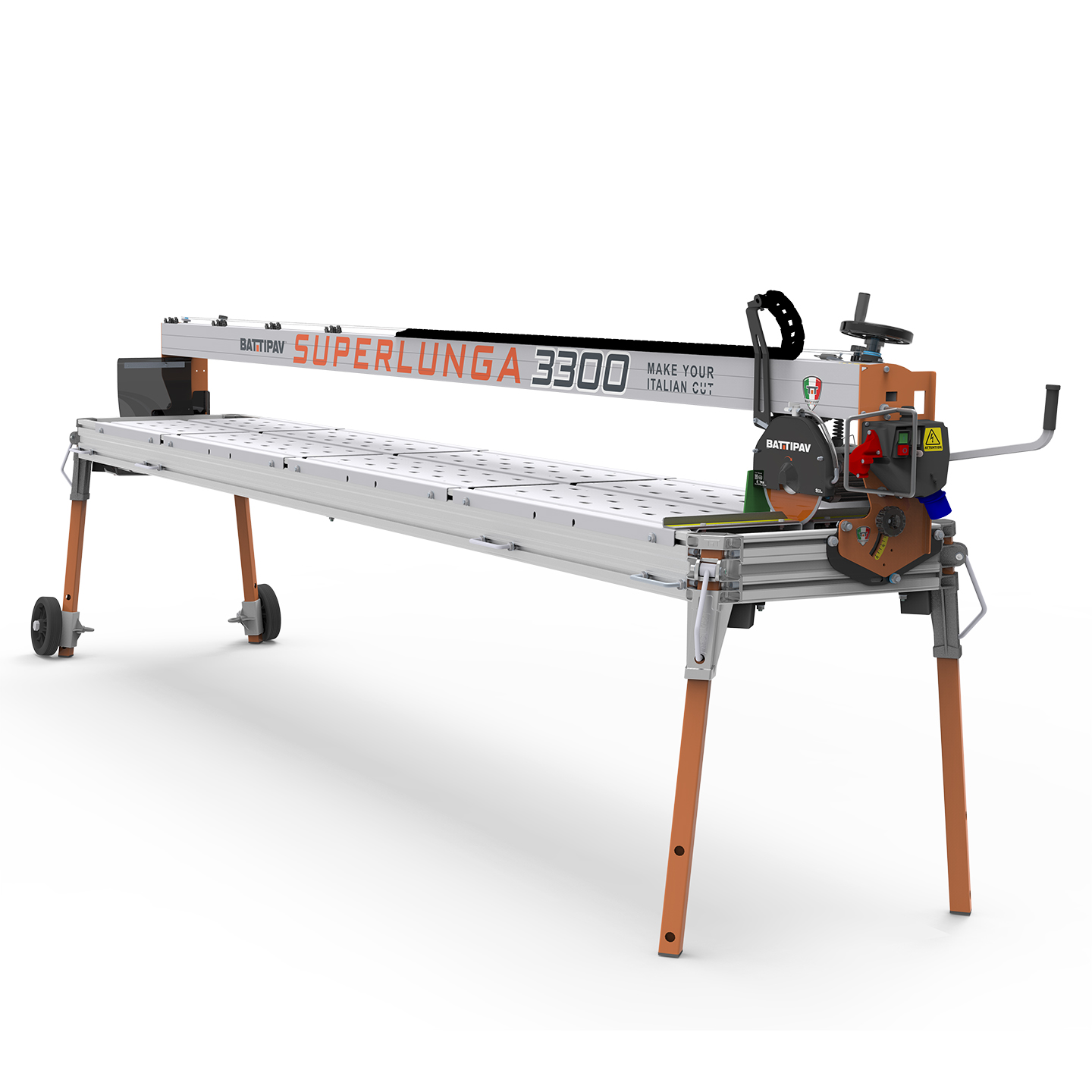

EXTRA 3300 S Superlunga is a new radial tile cutter ideal for straight and 45° angle cuts on oversize porcelain tiles. A new designed bridge profi le with vanguard technical innovation, strong and precise, it is equipped with a POWERFUL MOTOR, sliding and plunging cutting head.
It is built to work with diamond disks Ø200 mm special gres.
Laser instrument and kit wheels are supplied standard.
Equipped with:
– Single-phase 230V~50Hz 1,4Kw
– Sliding cutting head and tilting engine
– Thermal protection
– Switch with release coil
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S1
Water cooled
Disk Ø200 mm special gres included

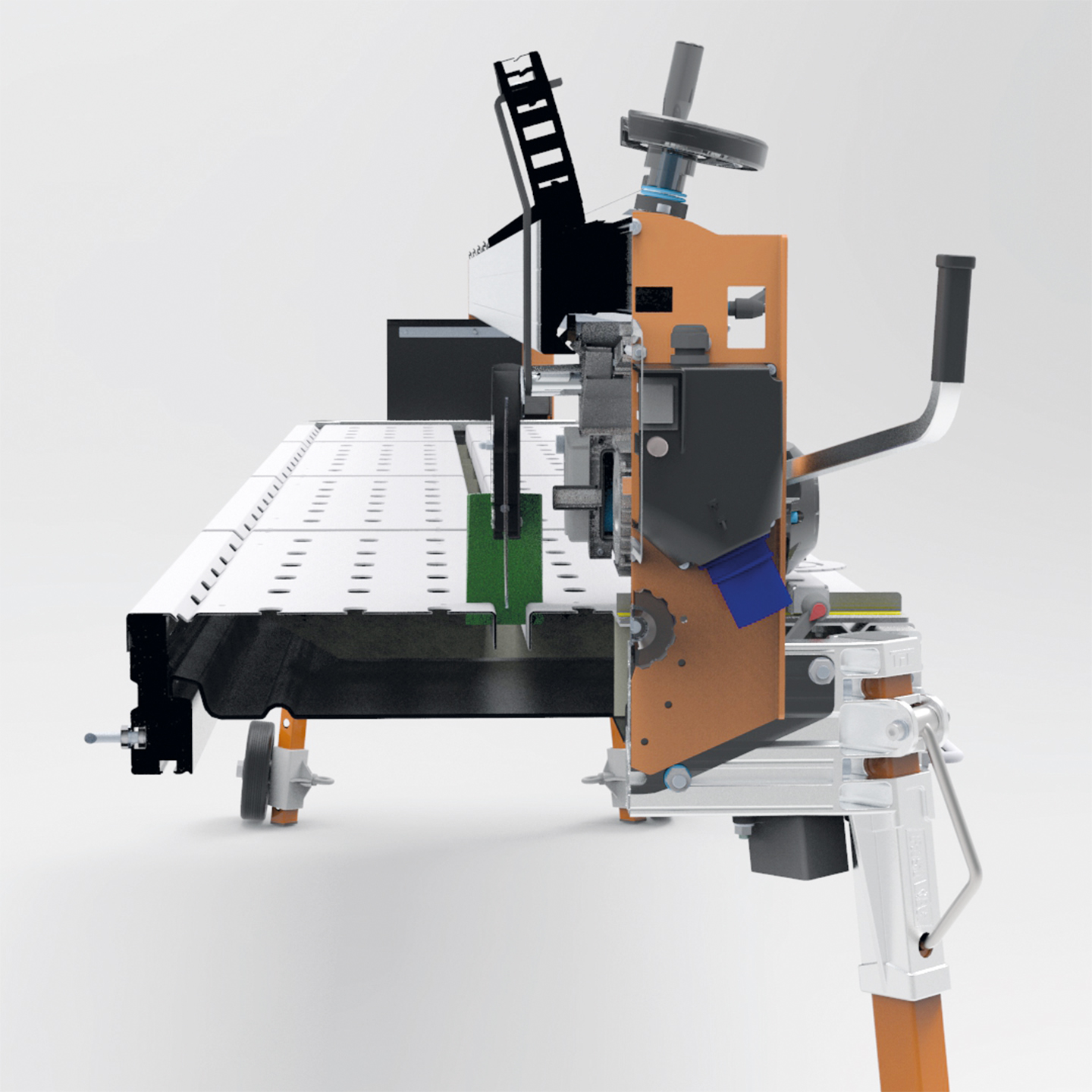

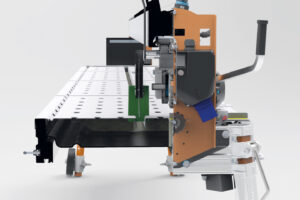

BRIDGE
The rail is in extrusion of alluminium at high resistance to the torsional stress. It’s equipped with interchangeable stainless steel bearings-tracks. Absolute cutting precision.

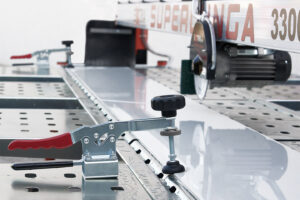

B-LOCK – TILE LOCKING SYSTEM
A smart device to block the material during the cutting operations.

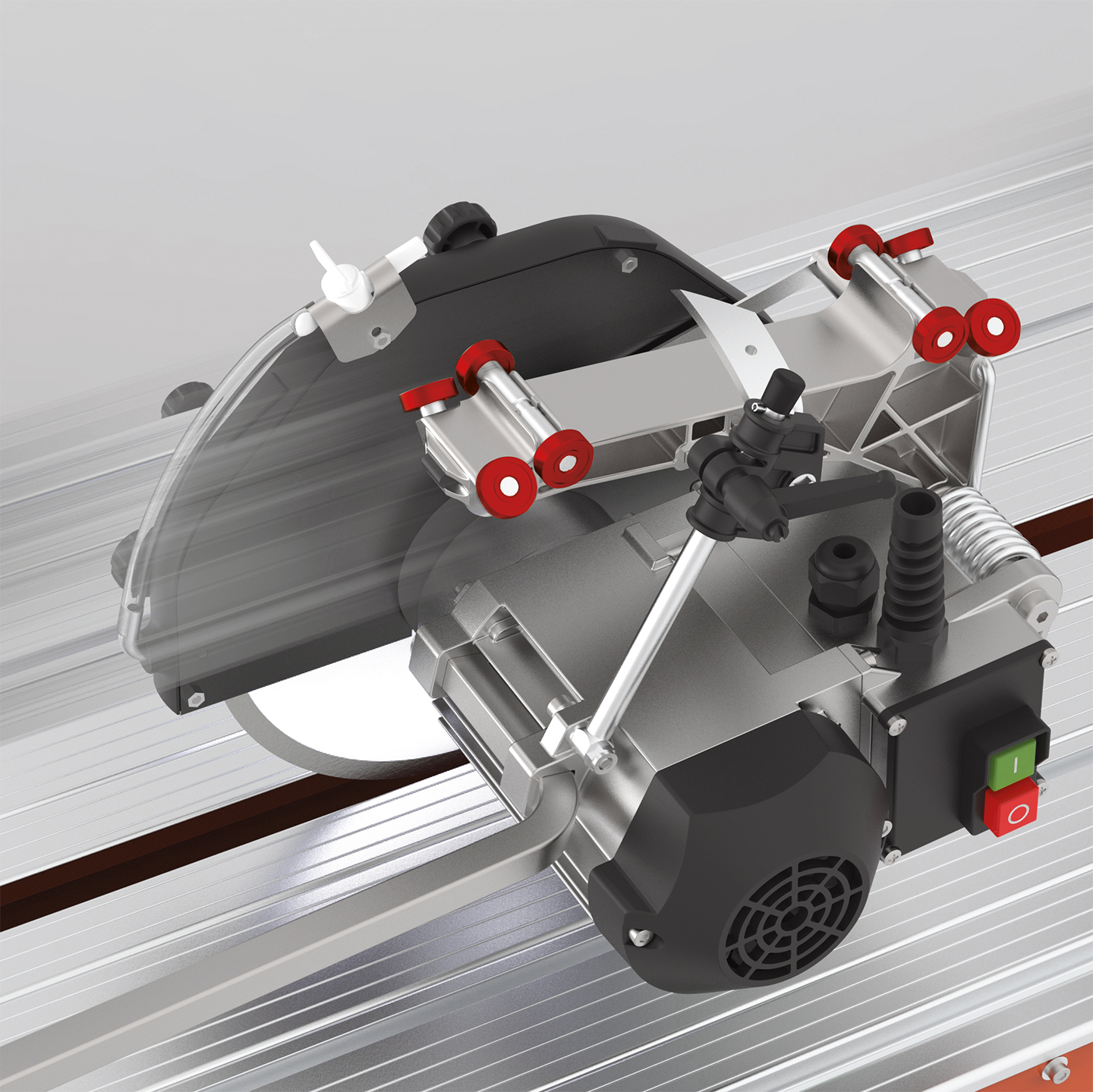

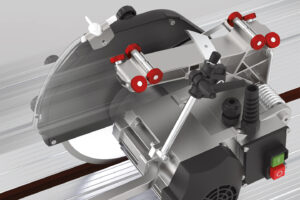

CARRIAGE
The carriage motor group slides with 8 ball-bearings on interchangeable stainless steel track.

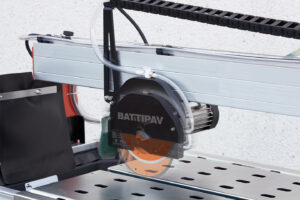

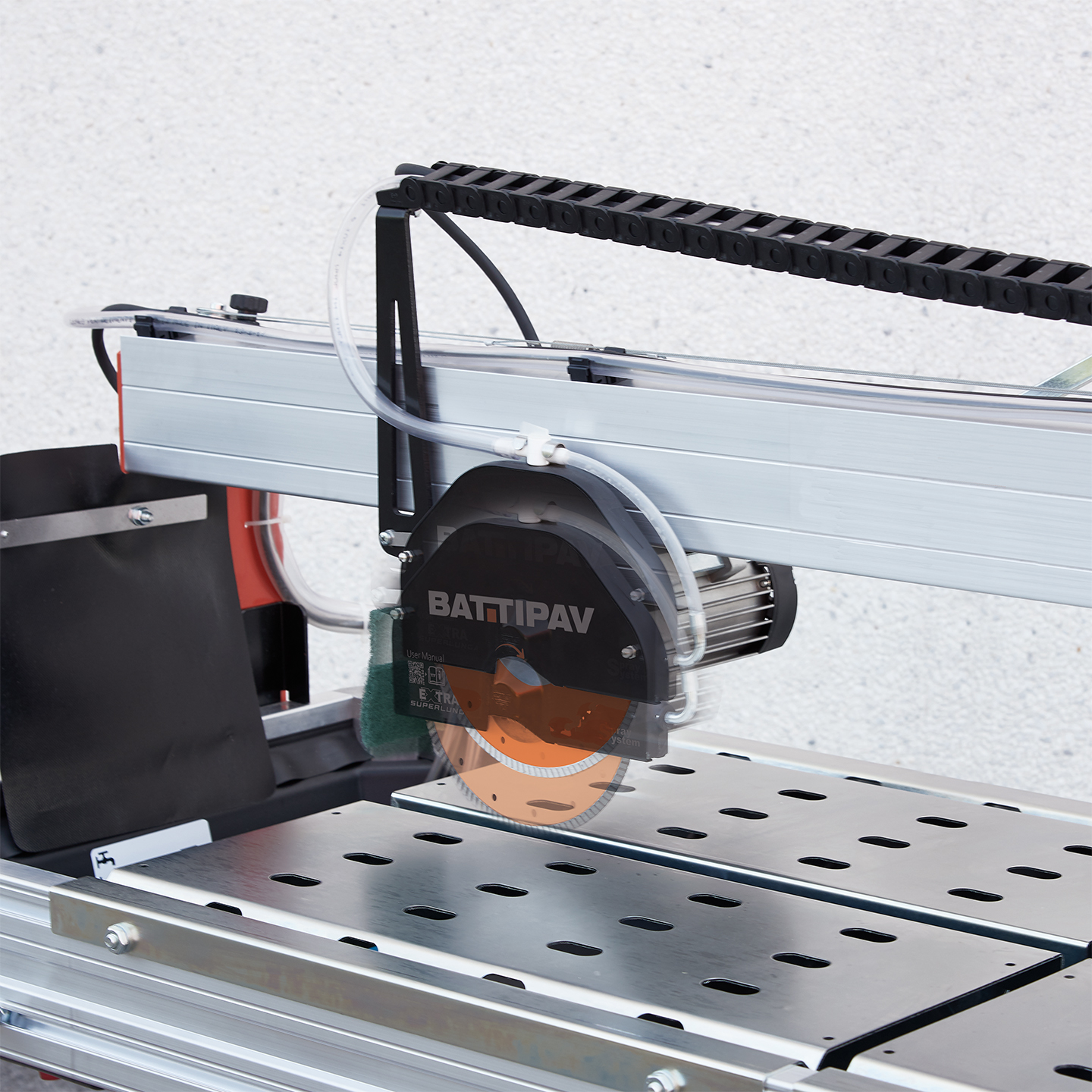

PLUNGING HEAD
The cutting head is plunging and can be locked at the intended height. It makes every kind of shape.

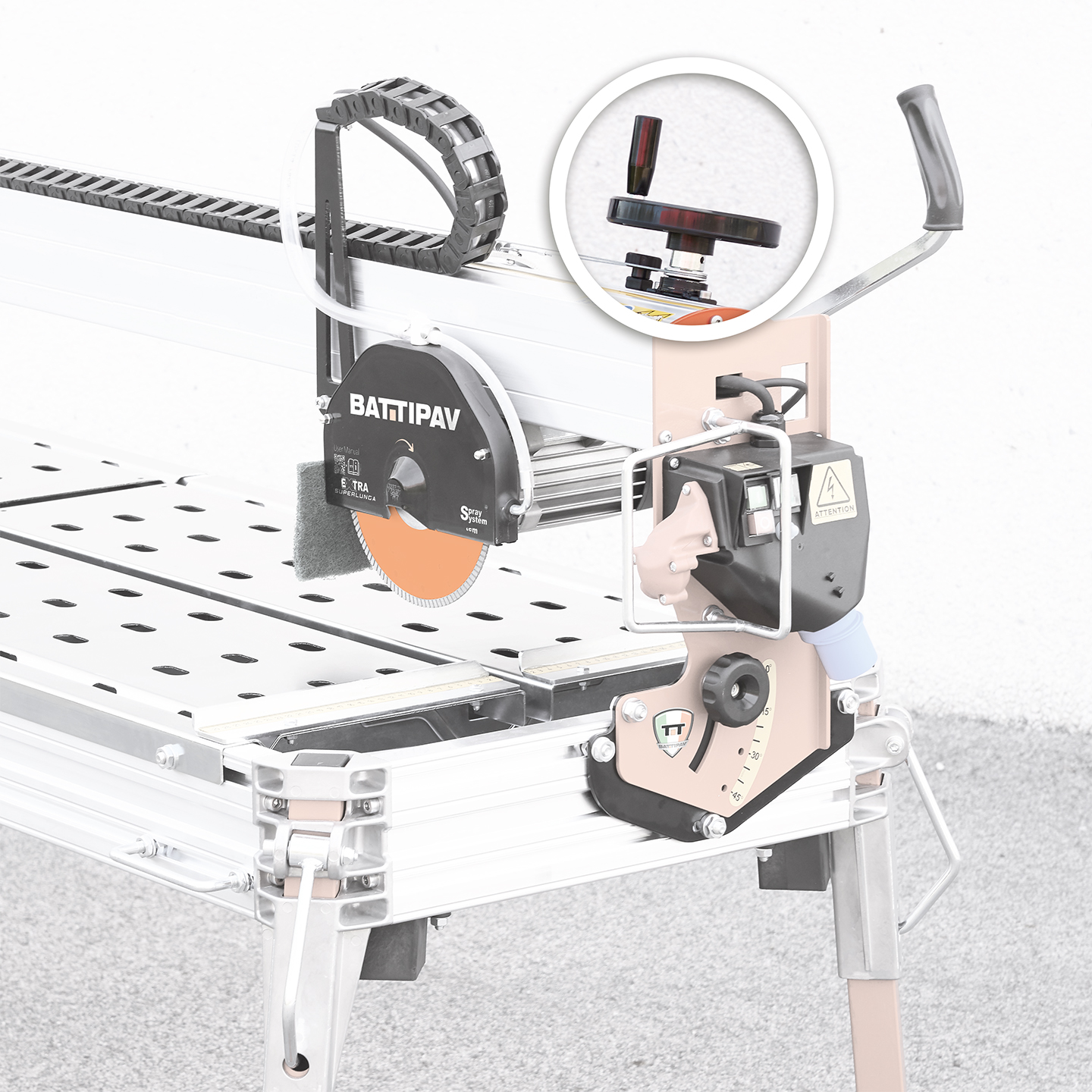

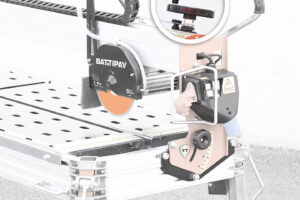

CUTTING PROGRESS SYSTEM
The cutting progress system with handwheel adjusts the movement of the cutting head forward or behind.
