PRIME 700

Description

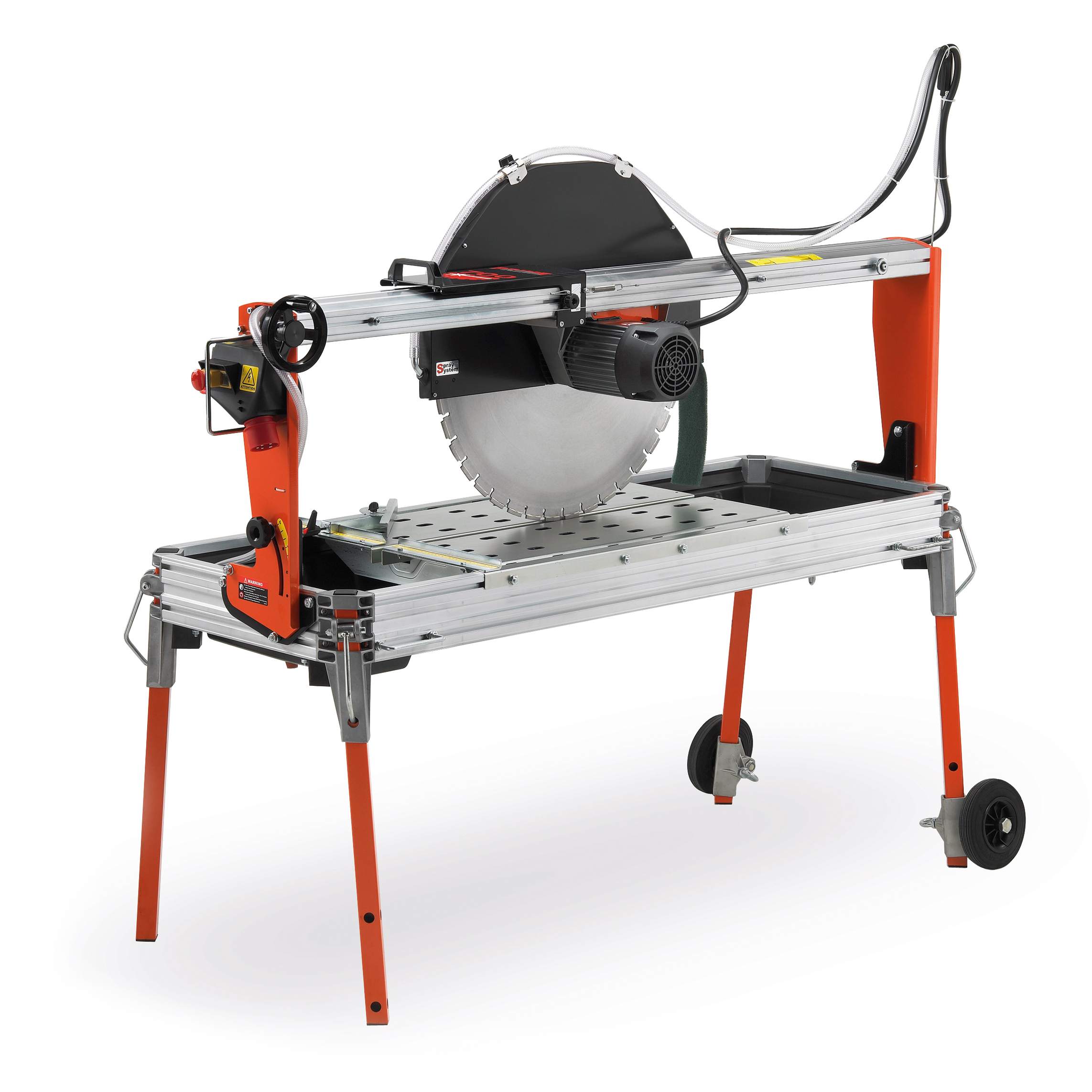

PRIME 700 is a bridge saw ideal for the building sector.
New design with vanguard technical innovation, strong and precise, it is suitable for cutting brick blocks, natural stones, poroton, concrete blocks.
It makes cuts moving forward manually the engine group. It is built to work with diamond disks Ø700.

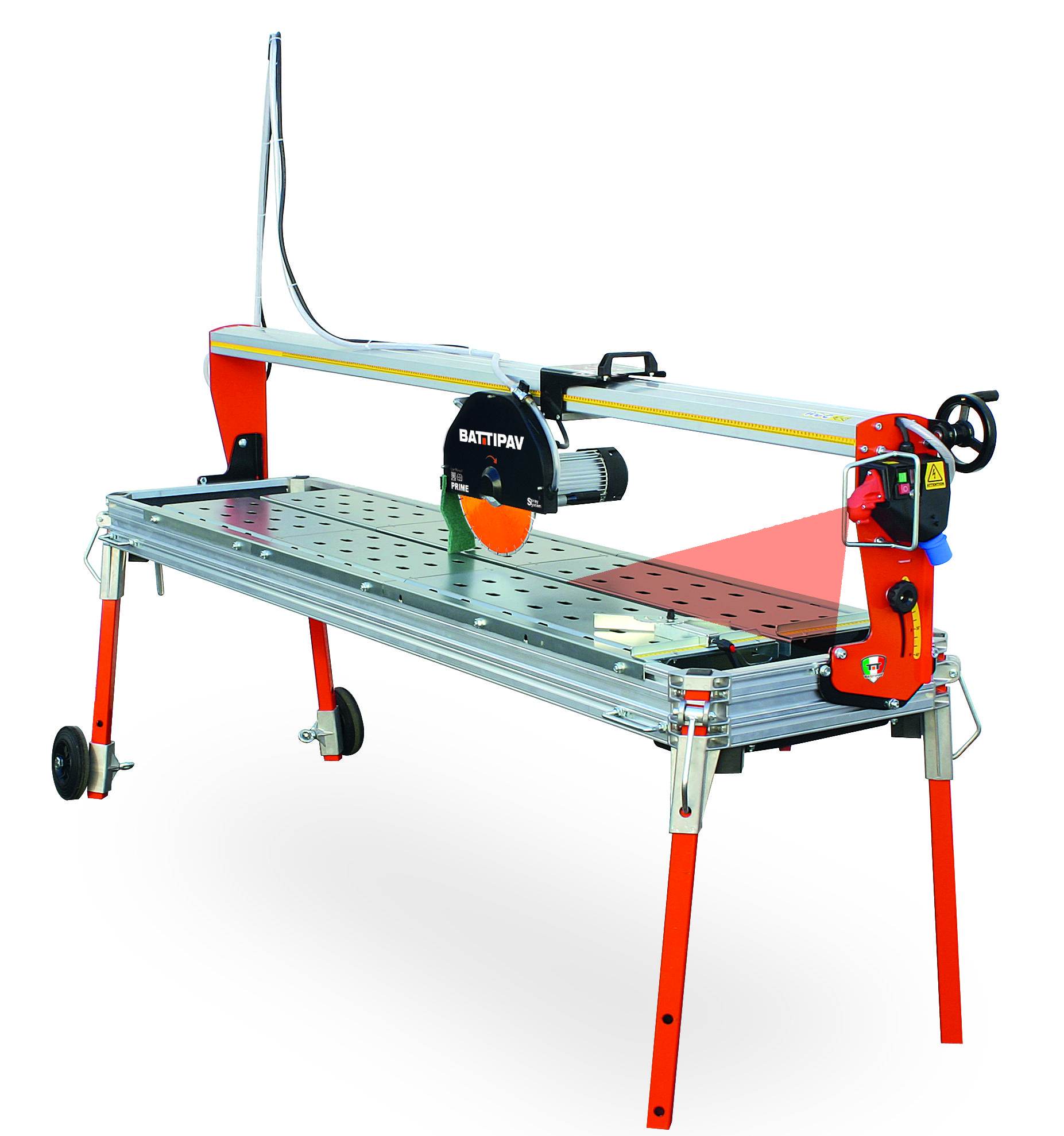

Laser instrument can be supplied standard or as optional.

Equipped with:
– Three phases engine 400V 50Hz 5,5Hp/4Kw with thermal and amperometrical protection
– Switch with release coil
– Overheat protection with manual reset
– Sliding cutting head
– Cutting progress system with hand wheel
– Kit wheels
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S3

Water cooled
Disk Ø700 mm not included

BRIDGE The rail is an extrusion of aluminium with high resistance to the torsional stress. It’s equipped with steel ball bearings running on interchangeable stainless steel tracks. Absolute cutting precision.

CUTTING PROGRESS SYSTEM The cutting progress system with handwheel adjusts the movement of the cutting head forward or backward.

SCALE MEASURE Millimetres graduated scale for a fast execution of the cuts in series.

STRUCTURE Made in extruded aluminium to get the maximum of rigidity and lightness at the same time.

STRUCTURE

Aluminium draw-plate to get the maximun of rigidity and lightness at the same time.
It has four handles for the carriage and movement.

BRIDGE

The rail is in extrusion of alluminium at high resistance to the torsional stress.
It’s equipped with interchangeable stainless steel bearings-tracks and millimitres graduated scale for a fast execution of the cut.
