Description

Class is a radial tile cutter designed for making straight and 45° miter cuts on porcelain stoneware, tiles, and marble. Featuring an innovative and technologically advanced design, it is sturdy and precise, with a sliding cutting head and a tilting motor. It is designed for use with Ø200 mm diamond blades and includes the laser kit and wheels as standard equipment.

VIDEO

Range

Description

Description

Class is a radial tile cutter ideal for straight and 45° miter (jolly) cuts on ceramics, single-fired tiles, porcelain stoneware, and marble.

Innovative and equipped with cutting-edge technical solutions, it is solid and precise, featuring a sliding cutting head and a tilting motor.

Equipped with a Ø200 mm diamond blade specifically designed for porcelain stoneware.

Laser tracer and wheel kit come standard only on the “S” version.

Equipped with:

  • Thermal overload protection
  • Sliding cutting head and tilting motor
  • P0 water pump
  • Ø200 mm porcelain stoneware blade included (Art. TNSB200W)
RAIL – The rail is equipped with an interchangeable stainless steel track for a perfect sliding of the motor group carriage.
PLUNGING HEAD – The cutting head is plunging and can be locked at the intended height. It makes every kind of shape.
STRUCTURE – The structure is made of aluminum to ensure rigidity and lightness at the same time.

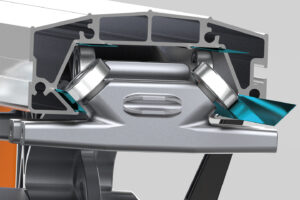

RAIL

Made of extruded aluminum with high resistance to torsion. Features interchangeable stainless steel bearing guides and a graduated millimeter scale for quick cutting setup.

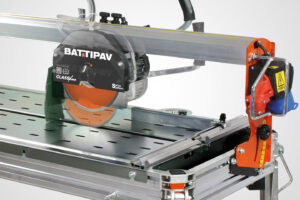

CUTTING HEAD

The cutting head is tilting and can be locked at the desired height. Capable of making any type of shape or cutout.

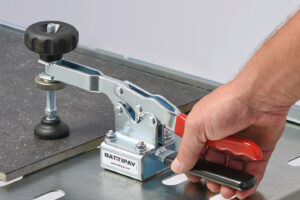

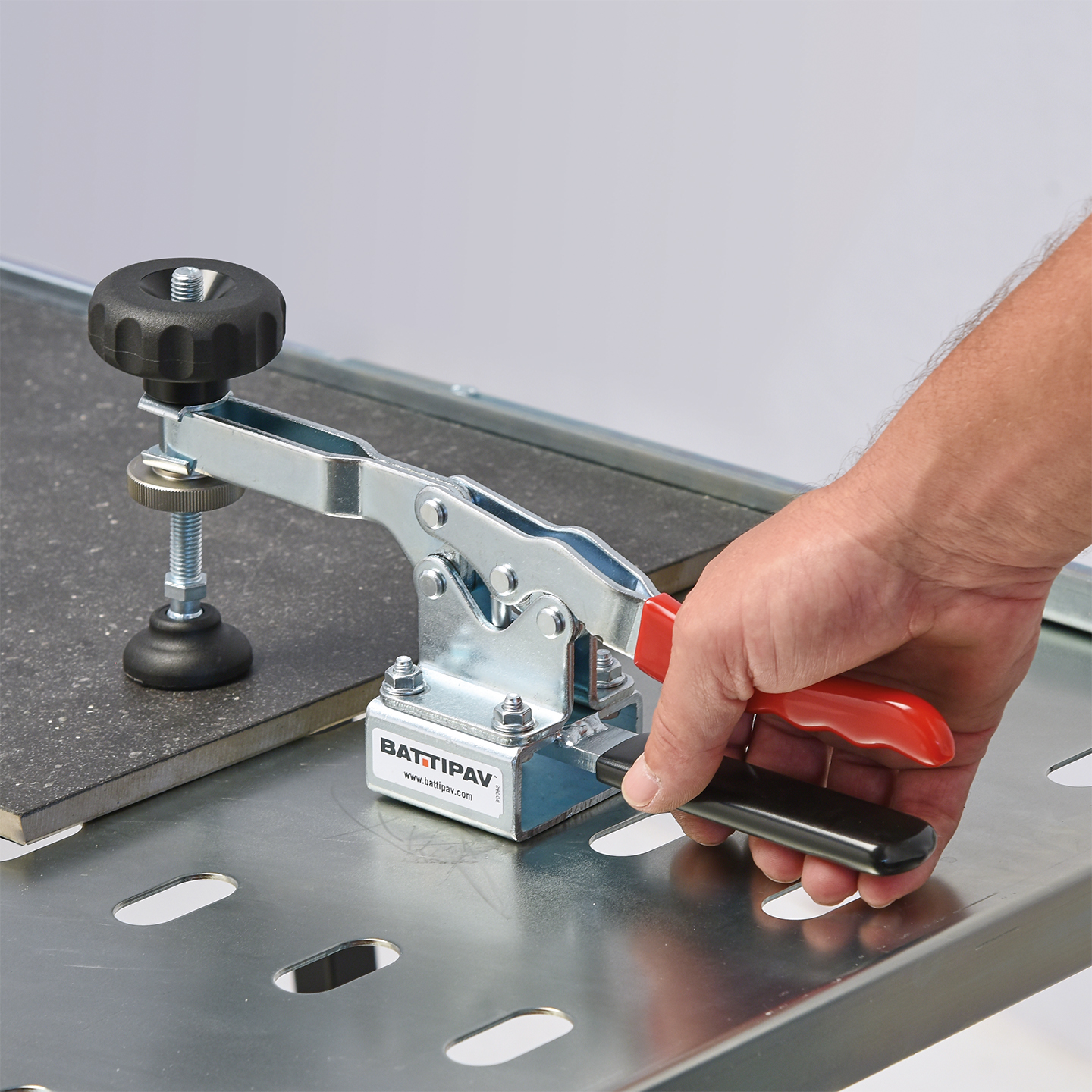

B-LOCK (Optional)

Useful clamping device to secure the material during cutting operations (Art. 90262U).

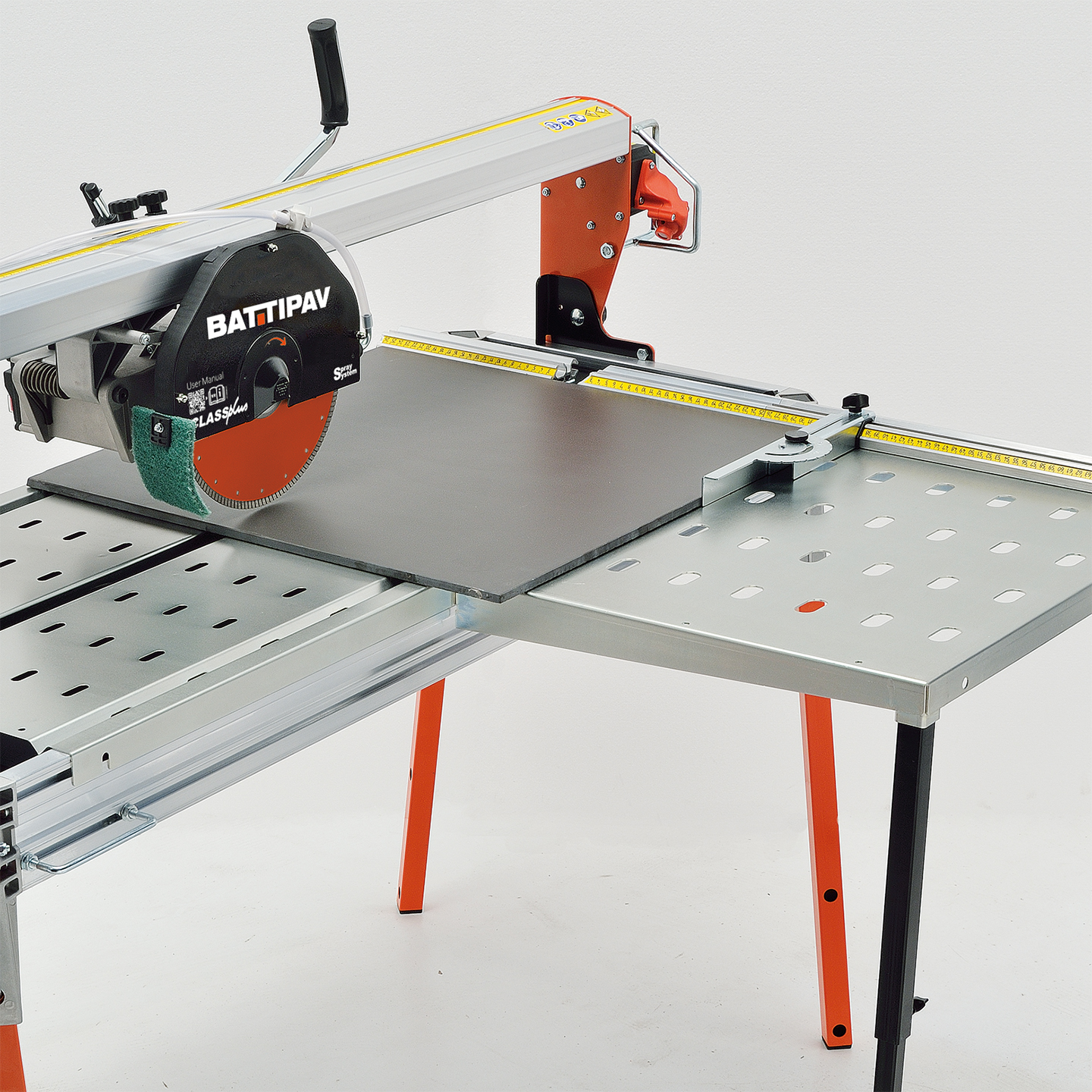

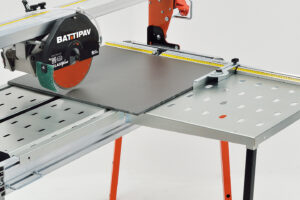

WORKTABLE EXTENSION (Optional)

Very useful when cutting large-format tiles and marble slabs (Art. 70241).
