Vip

Description

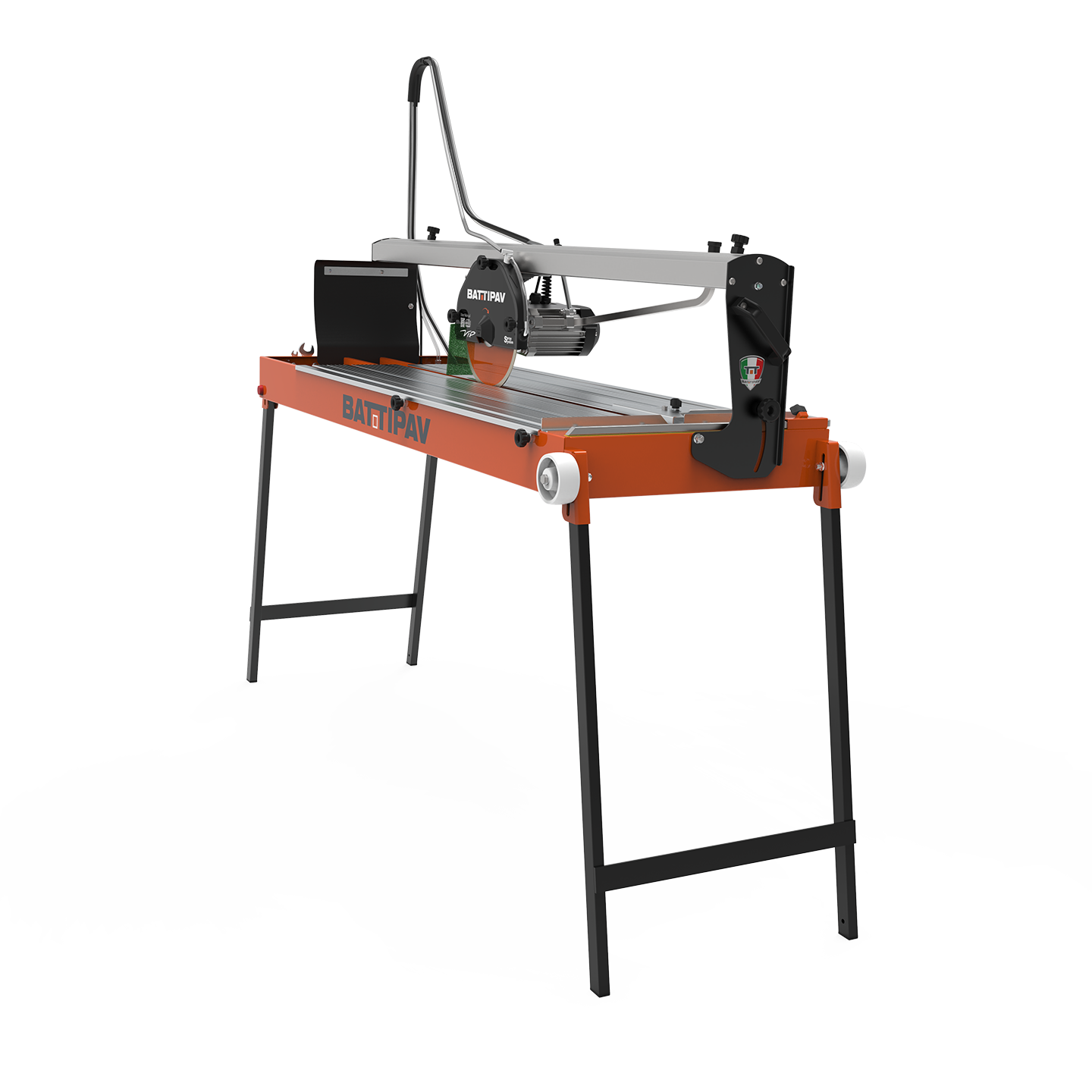

Vip is a radial tile cutter ideal for straight and 45° miter cuts on ceramics, single-fired tiles, and porcelain stoneware. Sturdy and precise, it features a sliding cutting head and a tilting motor. Built to work with Ø200 mm diamond blades.

Range

Description

Description

Radial electric tile cutter for straight and 45° miter (jolly) cuts on ceramics, single-fired tiles, and porcelain stoneware.

Lightweight and compact, it is equipped with a sliding carriage and tilting motor. In the VIP series, the legs fold up neatly underneath the worktable.

  • Sliding cutting head and tilting motor
  • Folding legs
  • Ø200 mm porcelain stoneware blade included (Art. TNSB-200W for Vip 2125)
  • Ø200 mm ceramic blade included (Art. 889 for Vip 2110, Vip 290, Vip 260)
GOGNOMETRIC FENCE – A professional adjustable gongometric fence is included.
SIDE EXTENSION (optional) – Handy for cutting large tiles.
PLUNGING HEAD – It can be locked at the wished height.

CARRIAGE

The motor assembly carriage slides along the beam on 6 bearings, 2 of which are adjustable. This ensures exceptionally fast and precise sliding movement. Applicable only to Art. 857.

MOTOR

A more powerful 1.4 kW motor equipped with a specific blade designed for porcelain stoneware.

STRUCTURE AND WORKTABLE

An all-new aluminum worktable, easy to disassemble for immediate cleaning of the basin; additionally, it offers the convenient option to attach the B-Lock clamping system.

TILTING CUTTING HEAD

The cutting head is tilting and can be locked at the desired height. Capable of making any type of shape or cutout.

OPTIONAL

Worktable extension
