Class Plus

Description

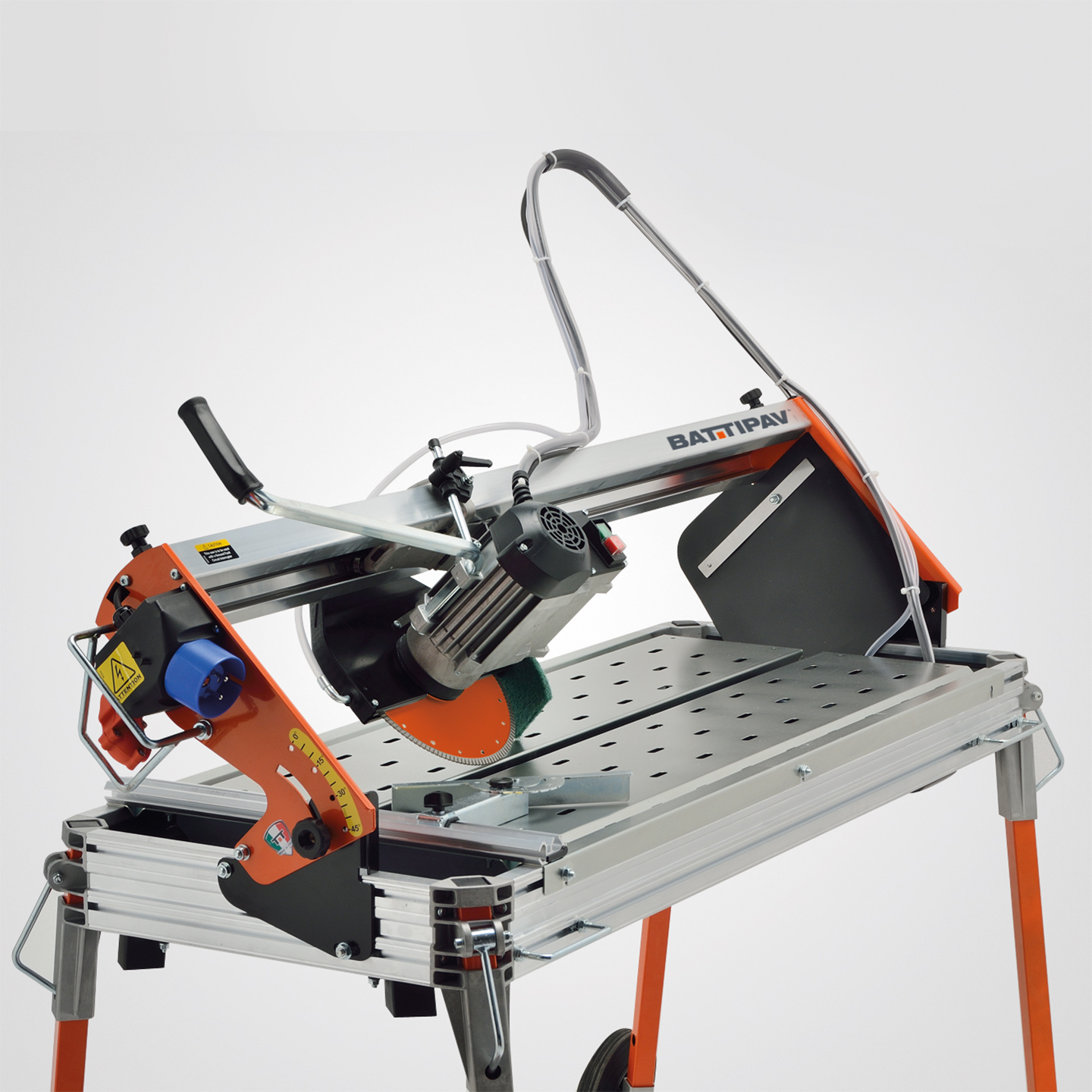

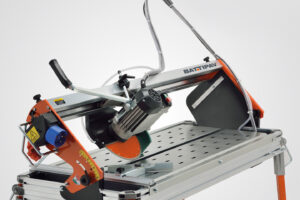

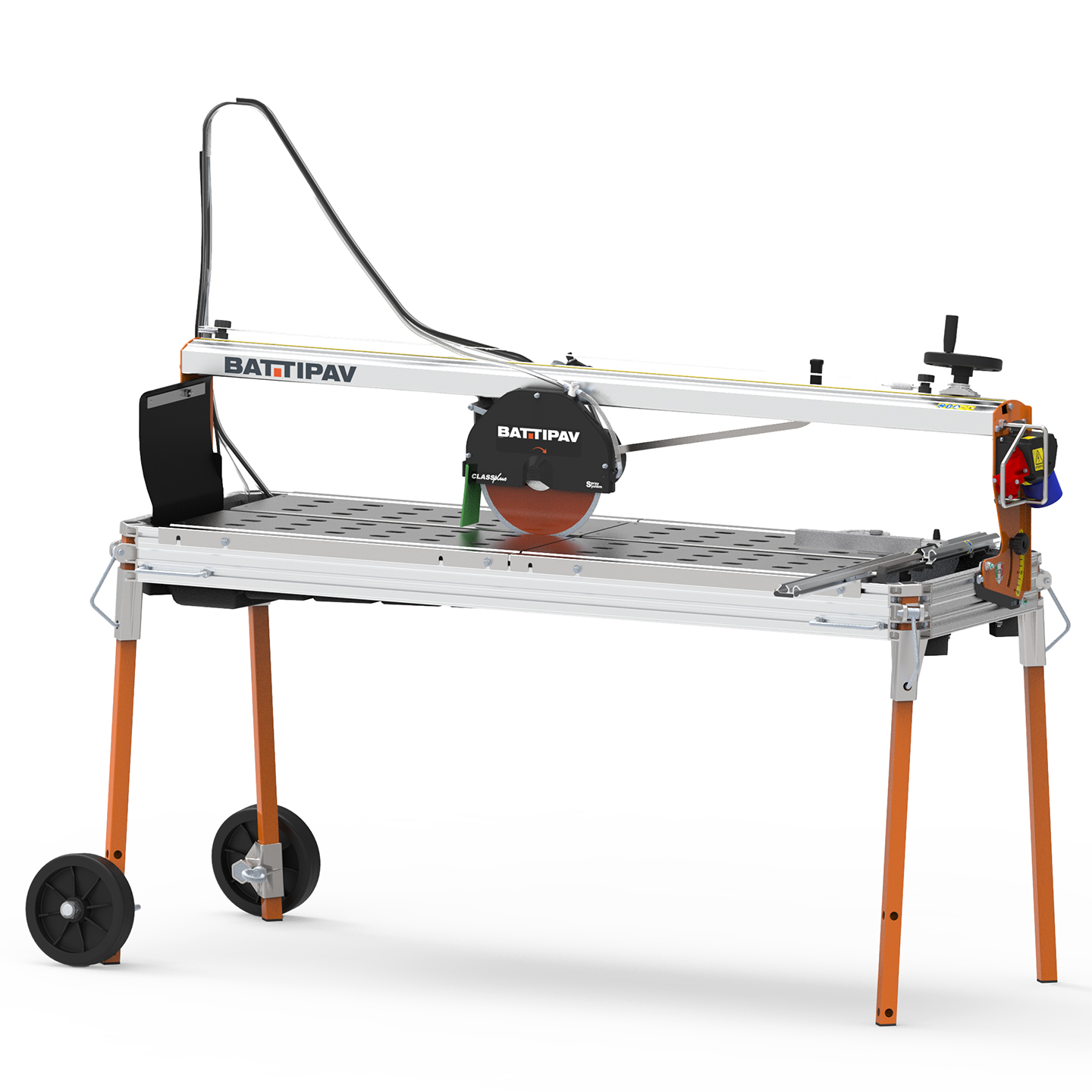

Class Plus is a radial tile cutter perfect for performing straight and 45° miter cuts on porcelain stoneware, tiles, and marble. It features an innovative, cutting-edge design that ensures sturdiness and precision. Equipped with a powerful motor with a sliding and tilting cutting head. Designed for use with Ø250 mm diamond blades, it includes the laser kit and wheels as standard equipment.

Range

Description

The CLASS PLUS is a radial tile cutter ideal for straight and 45° miter (jolly) cuts on ceramics, single-fired tiles, porcelain stoneware, and marble.

Innovative and equipped with cutting-edge technical solutions, it is solid and precise, featuring a cutting head driven by a POWERFUL sliding and tilting motor.

Equipped with a Ø250 mm diamond blade specifically designed for porcelain stoneware.

Laser tracer and wheel kit come standard only on the “S” version.

Equipped with:

Thermal overload protection
Sliding cutting head and tilting motor
P0 type water recirculation pump

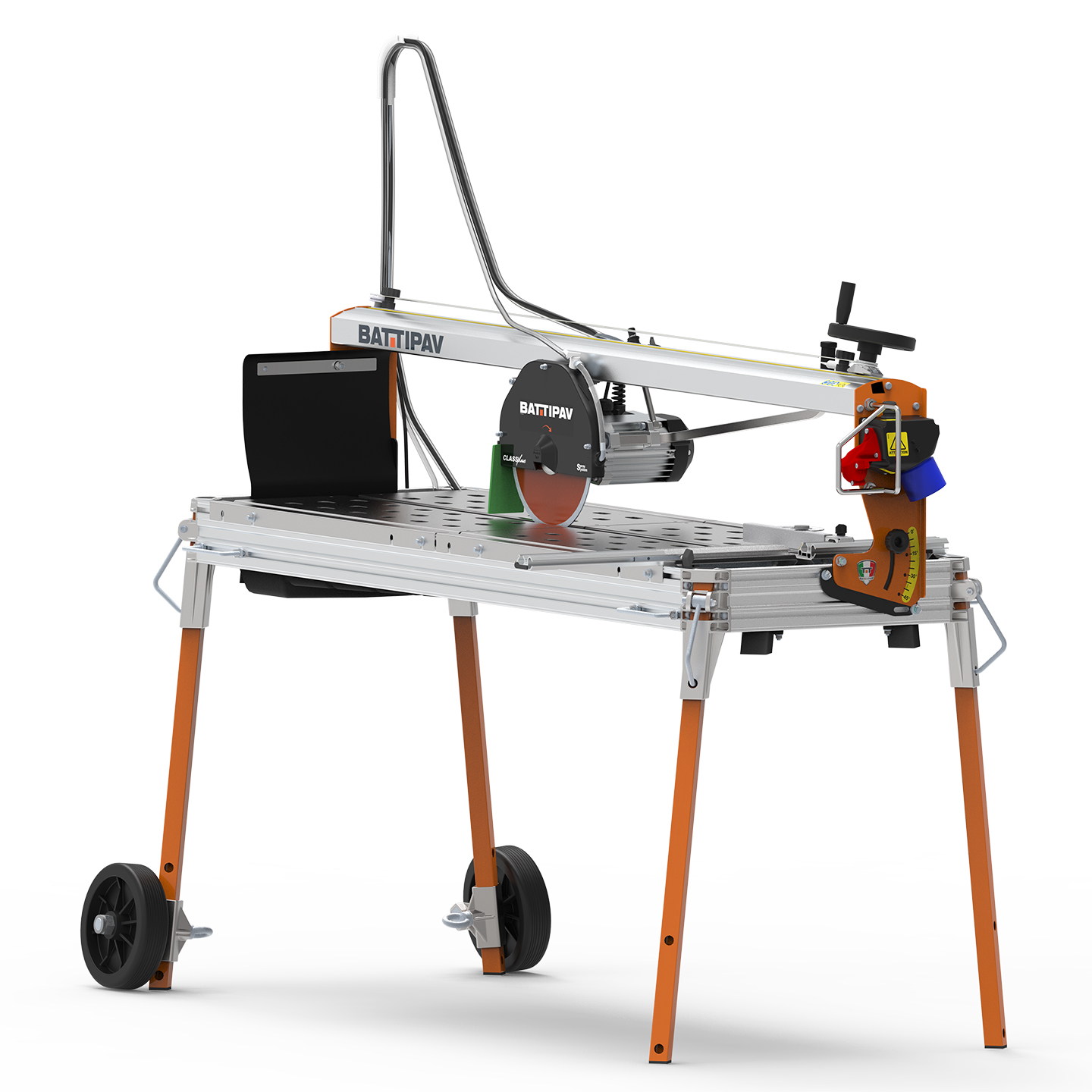

P1/4 type water recirculation pump for Class Plus 1300
Ø250 mm porcelain stoneware blade included (Art. TNSB250W)

RAIL – The rail is equipped with an interchangeable stainless steel track for a perfect sliding of the motor group carriage.

STRUCTURE – The structure is made of aluminum to ensure rigidity and lightness at the same time.

MOTOR – Strong and powerful motor 1,8 Hp / 1,4 Kw.

RAIL

Made of extruded aluminum with high resistance to torsion. Features interchangeable stainless steel bearing guides and a graduated millimeter scale for quick cutting setup.
